Exposure & Middle Gray in DaVinci Resolve: Free DCTLs, False Color & the Mid-Gray Chart

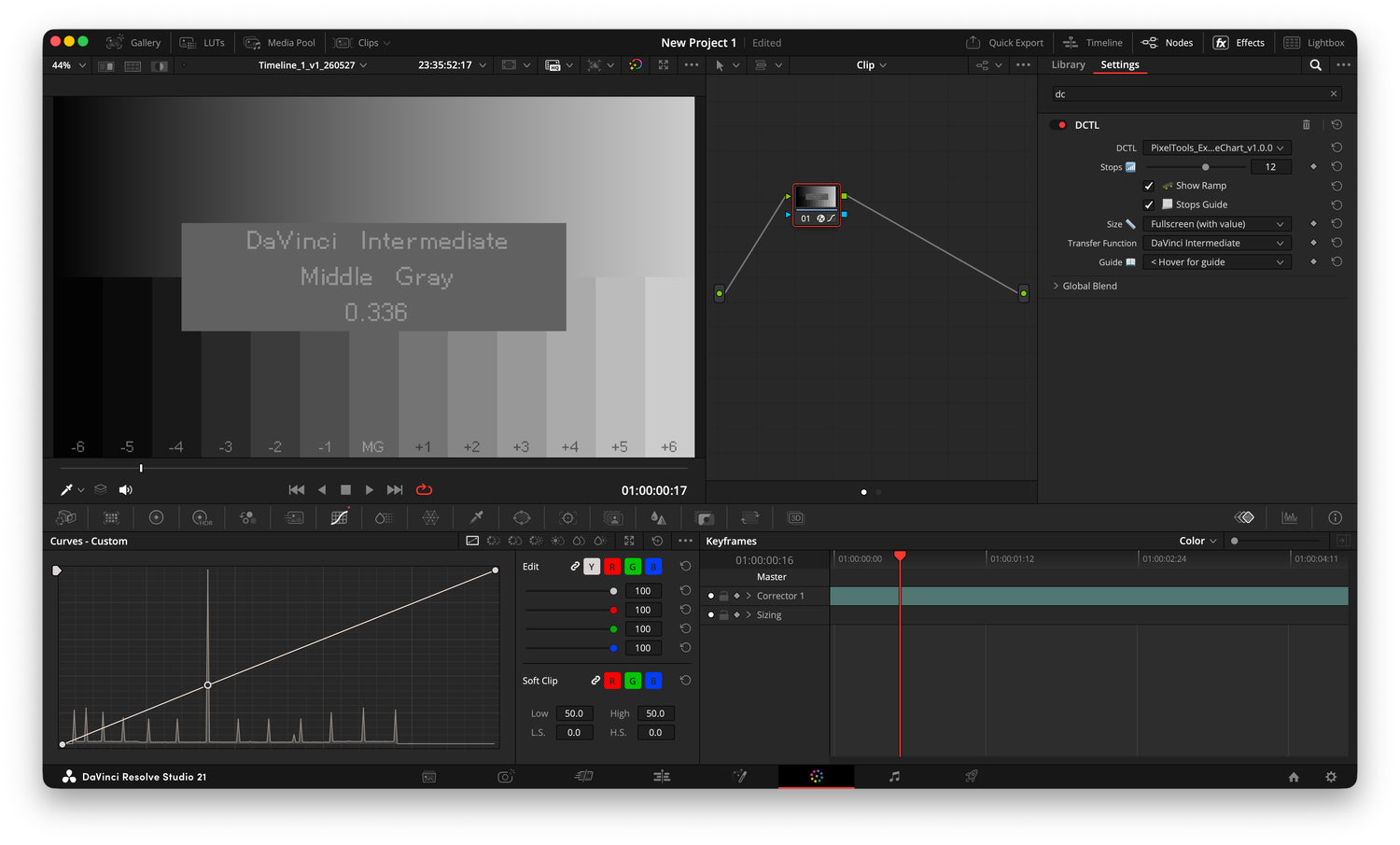

PixelTools ExposureChart DCTL in DaVinci Resolve showing middle gray (0.336) for DaVinci Intermediate with the stops ramp

Middle gray is the anchor every grade rotates around. Get it right and your exposure decisions stay honest shot to shot; let it drift and the whole image reads too bright or too dark. I'll show you how I read and set exposure in DaVinci Resolve using middle gray and false color, with two free DCTLs that put both right on top of your image, and the table at the end gives the middle-gray value for the common camera log curves and working spaces.

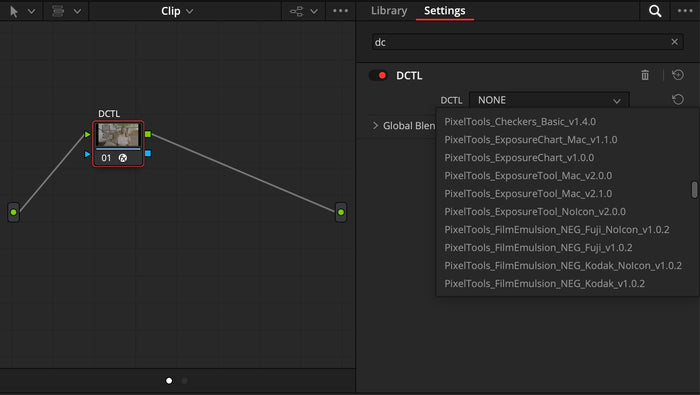

New to DCTLs in general? Start with our complete guide to DCTLs in DaVinci Resolve, then come back here for exposure.

Why middle gray matters

A surface that reflects 18% of the light hitting it looks about halfway between black and white to the eye, which is why reflected light meters are calibrated to it. Holding middle gray steady in the grade helps keep skin tones consistent scene to scene and cuts the time you'd spend re-balancing exposure. If middle gray drifts while you shape a custom curve, every other tone shifts with it. That's the reason to put a reference on screen.

How middle gray moves through your pipeline

Middle gray is one number in the scene (18% reflectance), but it lands on a different code value at each stage of the pipeline. Once you see why, the table below is easy to read. Your sensor captures light linearly, so 18% gray reads at 18% on the waveform. A log curve then redistributes that range to fit the recording format and puts middle gray at a fixed value of its own, which is why LogC3, S-Log3 and the rest each place gray somewhere different. Moving between two spaces is the same round trip every time: a color space transform decodes the source curve back to linear, then re-encodes into the target. As long as each stage is told the right curve, middle gray comes out where it should.

Anchor middle gray, and every exposure decision after it is honest.

Jason Bowdach, C.S.I.

Get a middle-gray reference into your pipeline

Resolve gives you no field to type a middle-gray value into a custom curve, so you need a middle-gray image in the pipeline. Two ways:

  • The built-in trick: open the HDR palette, set Contrast to 0 (it's pivoted to middle gray) and Global Saturation to 0. Works only if your color management, especially the timeline color space, is set up correctly.
  • The free Exposure/Chart™ DCTL: add it to a node, pick your working color space in its Transfer Function menu, and it fills the frame with the exact middle gray for that space and prints the numerical value. On the waveform it reads as one flat line at the level middle gray hits in that space. Set your contrast pivot to that value, and contrast turns around true middle gray instead of shifting your exposure. Raise the Stops slider and the chart adds steps above and below middle gray (set it to 12 for six stops each way), so you can see where the rest of your tonal range lands.
The free Exposure/Chart™ DCTL filling the frame with a middle-gray reference and printing the value for the working color space in DaVinci Resolve
The free Exposure/Chart™ DCTL drops an exact middle-gray reference into your pipeline and prints the value for your color space.

Read exposure with false color: the free Checker DCTL

The free Checker™ DCTL works like a set of scopes that sit on the image instead of beside it, and it covers more than exposure. Turn on false color and green sits at middle gray, with warm colors above and cool colors below, five stops each way by default. It's one of five views:

  • False color: exposure in stops, read straight off the image
  • Skin-tone checker: set the Skin Vector for your talent, then check that skin lands on the same target shot to shot
  • White-balance checker: flags near-neutral, low-saturation areas so you can see whether your whites are neutral
  • Middle-gray checker: marks neutral areas that sit at middle gray, for shots with a gray card or color chart
  • Negative checker: flags negative, NaN and infinite values before they cause problems downstream
The free Checker™ DCTL showing false-color exposure analysis directly on the image in DaVinci Resolve
The free Checker™ DCTL puts false color and four other views right on the image, no separate scope needed.

Checker™ supports multiple transfer functions (ACEScct, ARRI LogC3 and LogC4, DaVinci Intermediate, S-Log3 and more) and is built for scene-referred, color-managed workflows, where its exposure and skin-tone reads are most accurate. It also works display-referred if you want to check a finished, graded still.

Where to place them (and the one setting to get right)

Checker™ reads whatever reaches it, and both tools need to know your working space, so placement and color management matter. With node-based color management (a color space transform at the start and end of your tree), add Checker™ as the second-to-last node, right before your final output transform (ODT). Then set the DCTL's transfer function ("gamma") to match your working space; for DaVinci Wide Gamut / Intermediate, choose DaVinci Intermediate. Both tools also work with Resolve's automatic, timeline-based color management. If you grade on a hardware panel, install the NoIcon versions. The Icon versions add emoji to the control labels, and those don't work on control surfaces.

Middle gray by color space

18% middle gray lands on a different code value in every log curve, which is why a tool that knows your working space helps. Here are the values to grade against, in normalized 0 to 1, 10-bit and 12-bit (full-range code values). Exposure/Chart™ prints the normalized value for whichever curve you pick in its menu:

Transfer function (log curve) Middle gray (0 to 1) 10-bit 12-bit
ARRI LogC3 0.391 400 1601
ARRI LogC4 0.278 285 1140
Sony S-Log3 0.411 420 1681
RED Log3G10 0.333 341 1365
Canon Log2 0.398 407 1631
Canon Log3 0.343 351 1406
Panasonic V-Log 0.423 433 1733
Blackmagic Film Gen 5 0.384 392 1571
Fujifilm F-Log 0.459 470 1881
Fujifilm F-Log2 0.391 400 1601
DJI D-Log 0.399 408 1633
Apple Log 0.488 500 1999
Nikon N-Log 0.364 372 1489
Leica L-Log 0.435 445 1783
DaVinci Intermediate 0.336 344 1376
ACEScc / ACEScct 0.414 423 1694
Linear (scene) 0.180 184 737
Gamma 2.2 0.459 469 1878
Gamma 2.4 0.489 501 2004

Build your look around the anchor, don’t move it

Once middle gray is pinned, treat it as fixed. A strong look adds contrast and character above and below the anchor while middle gray passes through untouched: same level in, same level out. Resist baking a blanket exposure shift into a look or LUT. Unless every shot is off by the same amount in the same direction, a blanket shift fixes some shots and pushes the rest further out, which means more correction work, not less. Set exposure per shot, then let the look ride on top. If you'd rather make that per-shot move in stops, that's the job of Exposure/Tool™, our paid exposure DCTL, and of the Exposure PowerGrade Collection, 12 PowerGrades built from Resolve's own tools.

One limit: Checker™ and Exposure/Chart™ are free downloads, but DCTLs don't load in the free edition of Resolve, so you'll need DaVinci Resolve Studio. For install steps and everything else on DCTLs, see the complete DCTL guide.

Watch: pinning middle gray in DaVinci Resolve's custom curves - and why anchoring it keeps your exposure honest through the grade.

Exposure & middle gray FAQ

What is middle gray in DaVinci Resolve?

Middle gray (18% gray) is the perceptual midpoint of lightness - the reference point colorists grade around, and roughly where well-lit skin tones sit. Anchoring it keeps your exposure honest as you build a look. It lands on a different code value in every log curve (about 0.391 in ARRI LogC3, 0.336 in DaVinci Intermediate, 0.411 in S-Log3); the free ExposureChart DCTL shows the exact value for your color space.

What's the best free exposure DCTL for DaVinci Resolve?

PixelTools gives away two: the ExposureChart DCTL drops a precise middle-gray reference into your pipeline and prints the numeric value for your color space, and the Checker DCTL overlays false color, skin-tone and white-balance checks. Both are free to download - and, like every DCTL, they require DaVinci Resolve Studio.

What is false color in DaVinci Resolve?

False color maps exposure to a color scale so you can read luminance at a glance instead of reading a waveform - middle gray, highlights and shadows each get a color. Resolve doesn't show a universal false-color view on every page, so colorists add one with a tool like the free Checker DCTL, where green sits at middle gray, warm is above and cool below.

How does the Checker DCTL compare to Mononodes' Utility DCTLs?

Both put analysis overlays on your image, but they're built for different pipelines. Mononodes' Utility DCTLs (RGB parade, clipping) are aimed mainly at display-referred footage. The PixelTools Checker - like every PixelTools DCTL - supports multiple transfer functions and is designed for scene-referred, color-managed workflows (DWG/ACES and the major camera log curves), where exposure and skin-tone reads are most accurate. Checker also works display-referred if you want to check a finished, graded still - but for the truest reads we recommend running it scene-referred.

How do I add a middle-gray or exposure chart to DaVinci Resolve?

Install the free ExposureChart DCTL into Resolve's LUT folder (Project Settings → Color Management → Open LUT Folder), restart Resolve, then add it via a node's DCTL OFX and pick your working color space. It fills the frame with the exact middle gray for that space and prints the value - read it on the waveform and set your contrast pivot there. DCTLs require Resolve Studio.

Where does middle gray sit for my camera's log curve?

It varies by transfer function. A few common ones (normalized 0-1): ARRI LogC3 0.391, ARRI LogC4 0.278, Sony S-Log3 0.411, RED Log3G10 0.333, Panasonic V-Log 0.423, Canon Log3 0.343, DaVinci Intermediate 0.336, Apple Log 0.488. The full table - in 0-1, 10-bit and 12-bit - is in the article above, and the free ExposureChart DCTL displays the exact value for your space automatically.

The bottom line

Nail exposure before you grade

Middle gray is the cheapest insurance in color: anchor it and every decision after it is honest. The free ExposureChart and Checker DCTLs put that anchor - and your whole tonal range - right on the image, in any color space. New to DCTLs? The complete DCTL guide covers install, use and the best ones to add.
